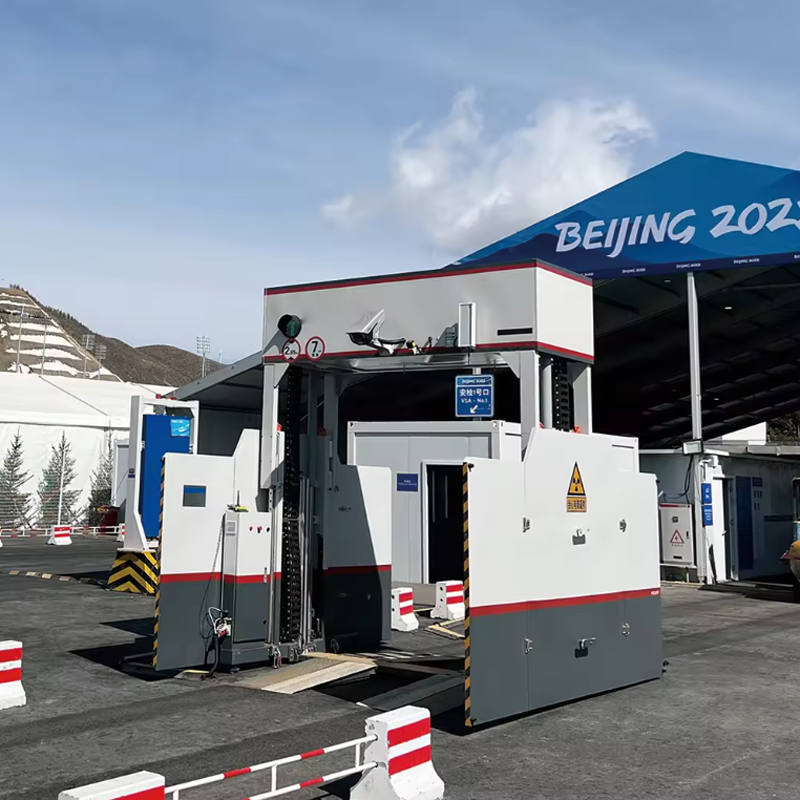

Car Truck Vehicle Cargo X Ray Luggage Scanner Security Inspection Machine for airport douane

Car Truck Vehicle Cargo X Ray Luggage Scanner Security Inspection Machine for airport douane...

Product Details

X Ray Baggage Scanner Paramenters

Basic parameters		Operating environment
The tunnel size	3000(W)*3000(H)mm	Operating temperature/humidity	-20℃-+50℃
X Ray Energy	200KV	Scanning mode	Vehicles drive directly through
Scanning speed	10km/h	Pass rate	300 cars/hour

Details Images

Item	Specification
Type of X-ray source	Small size betatron
X-ray energy	7.5Mev
Penetration	300mm steel
Maz.Dim of scanned vehicle	Width:2.6m Height:4.7m Length:18m(extended dimensions as option)
Throughput	200 units of 18m long container vehicles per hour
Scanning method	The driver crives the container vehicle through the scanning tunnel and the system operates automatically
Power
Power consumption	＜10kva
Voltage	380土10% VAC,3-phase 5-wire or configured according to customer's requirement
Frequency	50土 Hz or configured according according to customer's requiment
Environment
Operating temperature	-20℃+55℃
Humidity range	0%~99%，non-condensing
Radiation Safety
Radiation protection area:14m(L)X7m(W)(with concrete wall)
Dose rate on the system boundary	＜2.5usv/h
Absorbed dose to cargo per scan	＜0.5usv
Absorbed dose to driver per pass	＜0.01usv
Absorbed dose to driver per pass @Full Vehicle Inspection mode	＜0.05usv per scan typical.(Conform to ANSI N43.17)
Occupational annual effective dose	＜1msv
Public annual effective dose	＜0.1msv
Operation&Inspection Subsystem
Computer Monitor	23"LCD Monitor
Laser color printer	A4 color printer
Image analysis	Pseudo color transformation;edge enhancement;filter;linear/logarithm transformation;histogram equalization;mirror;suspicious item mark and comments;image format transformation,etc.
Zoom	1/4X,1/2X,1X,2X,4X
Image acquisition mode	Real-time,synchronized
Operation Features
Scan speed	5~15km/h
