Drive Through Vehicle X-ray Scanner Inspection System for Truck & Container

Short Description:

The X-ray vehicle security inspection system is a x-ray based scanner to penetrate various cars and vehicles and find the dangerous goods and contrabands like guns, weapons, explosives and so on. It is mounted on a fixed conveyor rail of the floor, which can move the scanner automatically, the inspected vehicles can stay still and waiting for the scanning, without drivers or passengers inside. It ...

Energy level of X ray source: 6Me:
Scanning speed: 200mm/s ~ 400mm/s:
Typical throughput: 20 units of 40GP/h:
Max. penetration: 300mm steel:

Send email to us

Product Details

Product Tags

Container Inspection System

Secuera SE8100 container/vehicle inspection systems are designed and manufacturered for fast scanning and out-of-box inspection of small and big vehicles including container trucks. The tunnel size is 2.6m * 4.6m (W*H), which is big enough for various size of vehicles including containers trucks.

Secuera SE8100 container/vehicle inspection systems are widely applicable in ports, transportation, road gates, and bonded area, helping the local customs and police fast scan and 100% inspect the cargo and containers, trucks.

General Specification

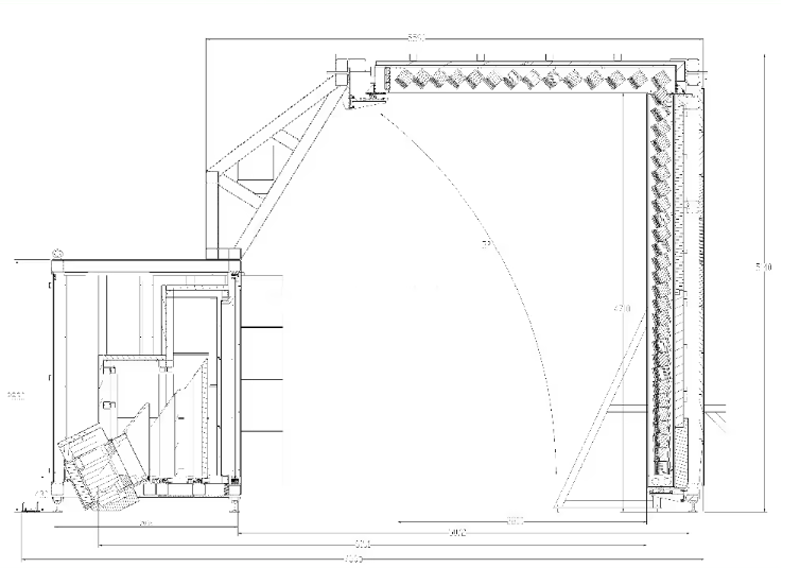

Tunnel size	2.6m (W) *4.6m (H)
Scanning speed	200m/s to 400m/s
Typical throughput	20units of 40GP/h
Energy level of X ray source	6 MeV
Penetration steel	300mm steel
A/D conversion	16 bit (65536)
Image acquision mode	Real- time, synchronized
X ray does per scan	20SV
Max. does rate on the system boundary	3 uSV/h

System Features
* High scanning speed
* Superior penetration and high quality images
* Make sure no image distortion
* The big tunnel size suitable for various container vehicles
* Reliable anti- radiation safety measures
* Design for compact module, with small space occupied
* Powerful image processing
* Friendly operate system
