  • Walk Through Metal Detector SE600P Of 6 Zones

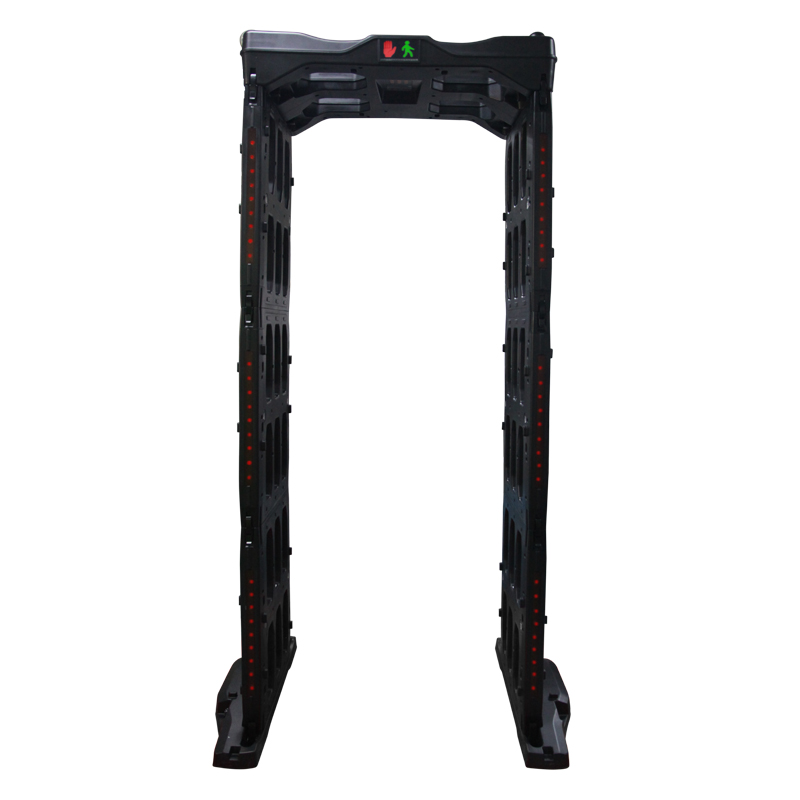

Walk Through Metal Detector SE600P Of 6 Zones

Technicial Datasheet Of Walk Through Metal Detector SE600P

Place of Origin


Brand Name


Model Number


Product name

protable Walk Through Metal Detector


Security Safety Checking


12 Months

Power supply






Functions and characters Of Walk Through Metal Detector SE600P:

l Head-to-Toe, Zone Specific Detected.

l 200 adjustable sensibility levels.

l There are three individual detect zones.

l Self calibration once power on.

l Self diagnostic, it will inform the user when exit the system.

l Memory Feature Stores Settings for last operator when power off.

l DSP and Microprocessor Controlled , login into the control panel safely.

l Automatic counting function

Applications Of Walk Through Metal Detector SE600P:

Schools and sports event

Meetings and VIP Security

Outdoors security protect

All the place that need the high sensitivity metal detect

Technical parameters Of Walk Through Metal Detector SE600P:

l Standard configuration: Battery ( working for 40 hours )

l Gross weight :  < 50 KG

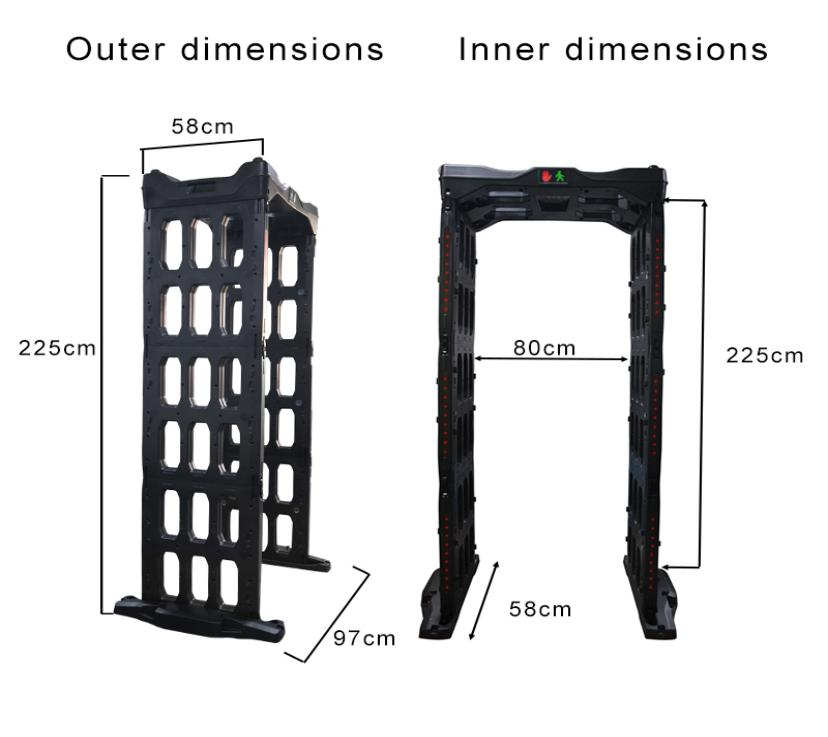

l Dimensions after disassemble : 90*58*66( cm ), it equals a suitcase size

l Standard : FAA NILECJ-0601.02

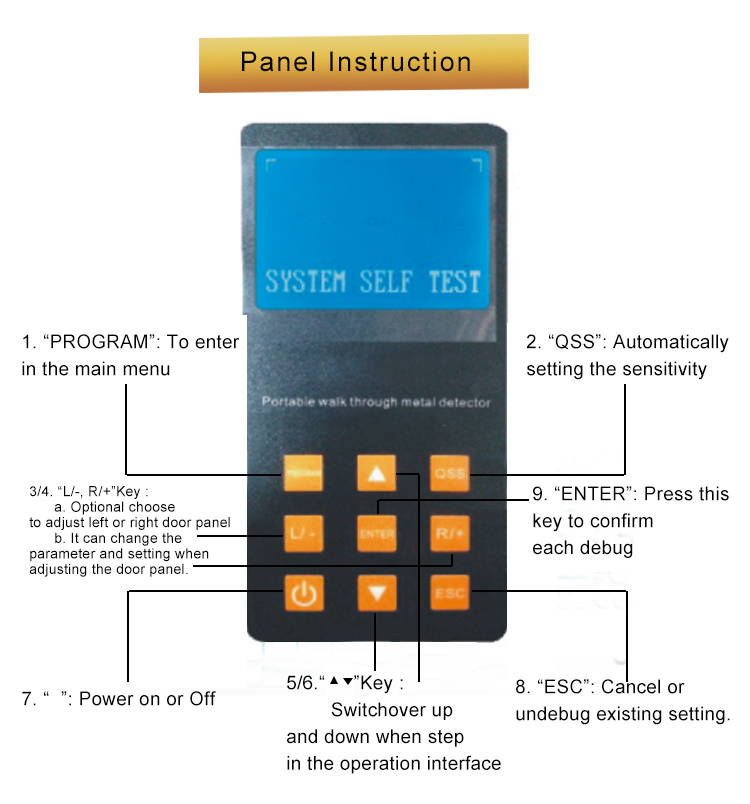

l Digital I/O keypad with security access control, Brilliant LED Bar Graph Indicates

l Target Strength, LCD touch panel

l Adjustable Volume Control

l Memory Feature Stores Settings for the special environment

l self test and Self calibration once power on

l Memory for the last environment and power off voice prompt

l Transportation convenience

l Trends : Single person carry

l Net weight : 90lbs

l Install and disassemble  within 5 minutes

l Single person setting:

High Efficiency : the special detection from the top to bottom

Three Sensor Zones with Brilliant LED

Adjustable sensitivity: (200 levels )

Designed by customers demand

Designed by environments using

Indoor and outdoor using

l It is made of ABS Polycarbonate alloy material, strong impact resistance and permanent using.

l Battery ( including the AC adapter and charger )

The battery can continuous working for 40 hours.

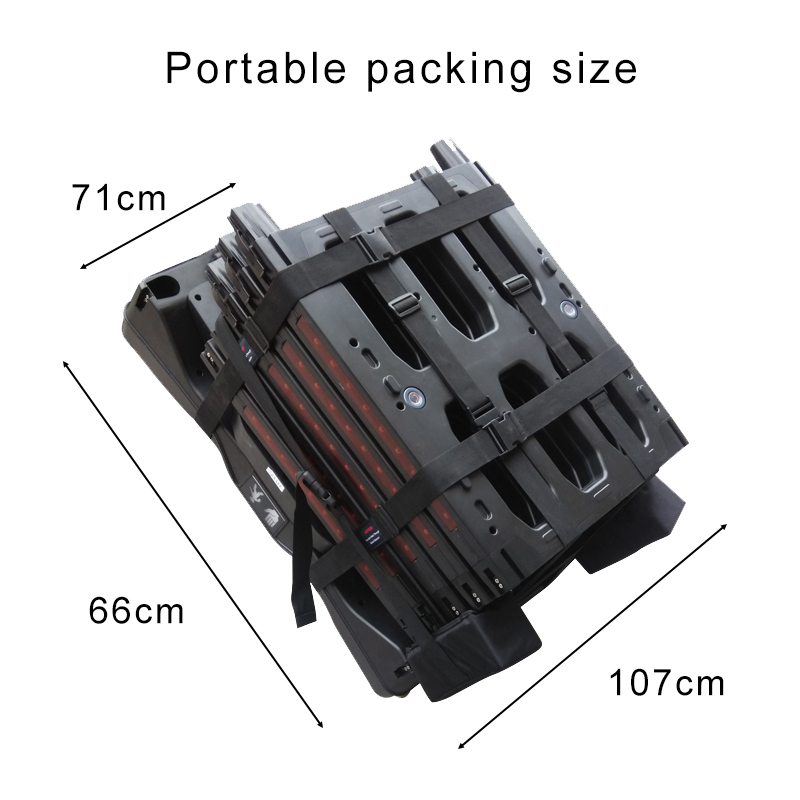

The folded Dimensions : 37″(0.9m)″×23″(0.58m) ×26″(0.66m)
